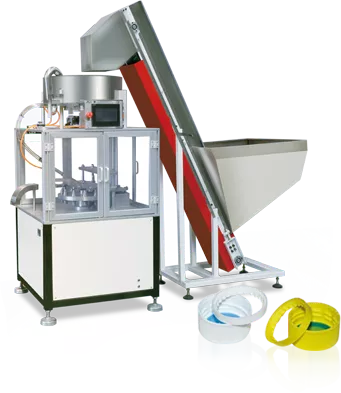

Full-automatic High Speed Slitting Machine
2 Full-automatic Slitting Machine is our latest high-efficiency, full-automatic Slitting machine for anti-theft bottle lids.The serial procedures including adding lids,sorting lids,feeding lids,cutting ring,dropping lids,and distributing lids to separate boxes,etc,are completed full-automatically at a high speed up to 50000-80000 pcs/hr.

Advantage

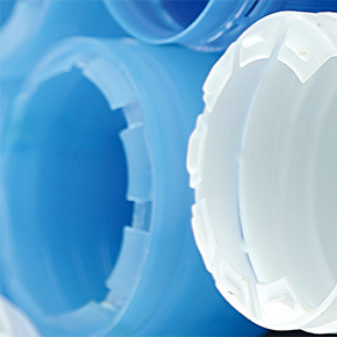

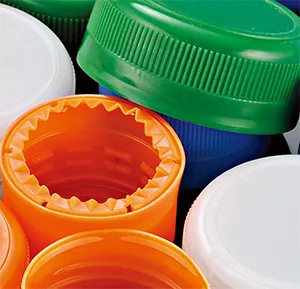

The main function is to cut the anti-theft ring of plastic bottle caps. The cutting machine requires absolute precision in technology, so that each bottle cap can be cut quickly and finely at high speed, but it can still maintain its many Functional characteristics, so as to ensure the consistency, anti-theft and tightness of each bottle cap's knife seam. The bottle caps cut by this machine are small, smooth, flat and beautiful, so that the anti-theft effect of the twist-off anti-theft cap can be better reflected after the bottle cap is cut.

Parameter

Model

PB-CMII

PB-CM2

PB-CM4

Min. cap diameter

15mm

15mm

15mm

Max. cap diameter

100mm

100mm

100mm

Production capacity (30x20 size)

50000-80000caps/h

15000caps/h

30000caps/h

Installed electrical power

1kw(50-60Hz)

0.8kw(50-60Hz)

1kw(50-60Hz)

Absorbed electrical power (approximate)

1kw

0.8kw

1kw

Compressed air consumption(approximate)

0.8m³/h

0.5m³/h

0.8m³/h

Machine size (LxWxH)

800x800x1800mm

600x600x1800

600x600x1800

Elevator machine size (LxWxH)

1500x800x2000mm

1500x800X2000mm

1500x800X2000mm

Machine weight (LxWxH)

430kg

320kg

320kg
